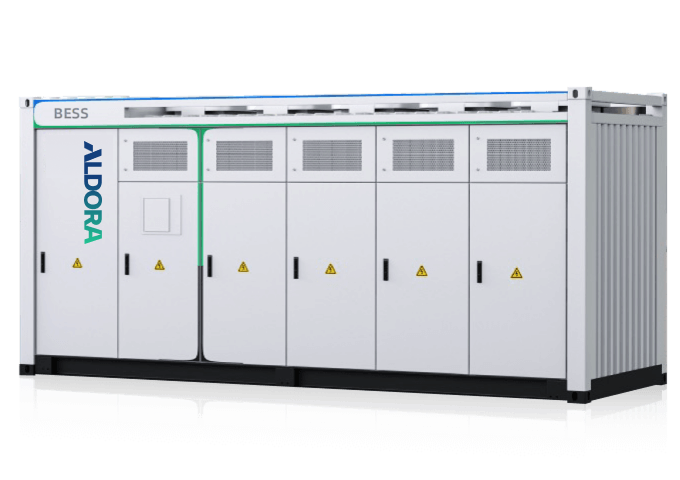

Aldora A2612
1.05MW/2.61MWh C&I
Energy Storage Container

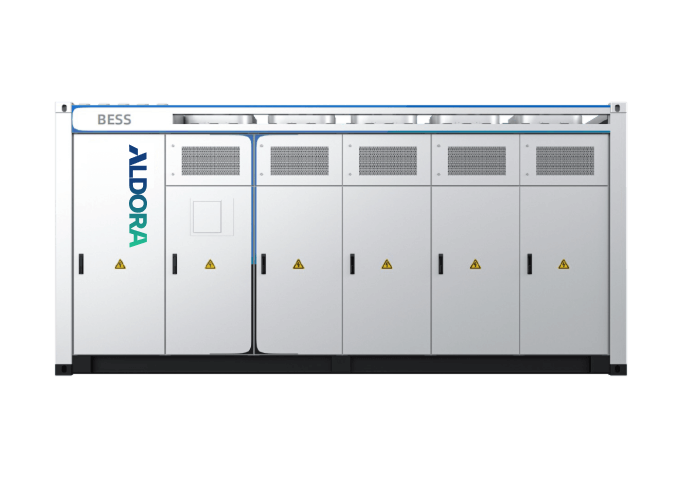

Key Features
Highly integrated
- AC/DC integrated design, combining the battery system and PCS
One cluster-one management
- Battery clusters are isolated from each other, with each battery cluster matched to a PCS, ensuring that a fault does not affect operation.
High energy density
- Reducing footprint, and higher available energy
Simplified grid connection
- Shortening on-site grid connection time.
Remote one-click upgrade
- Reducing on-site labor costs.
Technical specifications
Industrial and Commercial Storage 2612kWh System | |
|---|---|
| Product Model | Aldora A2612 |
| Product Type | Lithium iron phosphate battery system |
NO. | Items | Specifications |
|---|---|---|
| 1 | Configuration | 10 * (1P52S * 5) |
| 2 | Rated Energy | 2.612MWh |
DC Side | ||
|---|---|---|
| 3 | Rated Voltage | 832Vdc |
| 4 | Voltage Scope | 702 ~ 936Vdc |
AC Side | ||
|---|---|---|
| 5 | Voltage Scope | 400Vac |
| 6 | Grid Frequency | 50 / 60Hz |
| 7 | Rated Current | 1520A |
| 8 | Rated Charging | 1.05MW |
| 9 | Rated Discharge | 1.05MW |
Container Parameters | ||
|---|---|---|
10 | Interface Configuration | 3P+N+PE (N is reserved) | |
|---|---|---|---|
| 11 | Environmental Conditions | Storage Temperature | -35℃ ~ +55℃ |
| Operating Temperature | -30℃ ~ +50℃ (Derated use above 45℃) | ||
| Application Altitude | ≤4000m (derating above 2000m) | ||
| Dimensions | 6058 * 2438 * 2896 mm (W * D * H) |
| 12 | Basic Parameters | Color | RAL 9003 |
| Weight | ≈27t | ||
| IP Grade | IP55 | ||
| Anticorrosion Rating | C4 (C5: optional) | ||
| Cooling Method | Liquid Cooling | ||
| Communication Protocol | PCS: CAN/RS485/Ethernet /n EMS: Ethernet | ||
| Coolant | 50% Glycol Solution |
